Features
Crystal clear 19″ marine grade monitor for use as main or remote display
Resolution: 1280 x 1024 SXGA
Built-in scaler allows accepting up to SXGA (1280 x 1024) resolution
1,000 cd/㎡ brightness and A/R coating provides superior visibility even in direct sunlight
Bonded LCD provides clear view in any weather conditions
Automatic dimmer sensor adjusts the display brightness as light conditions change

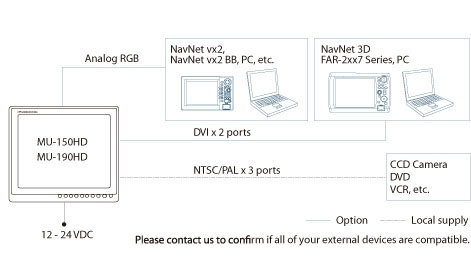

1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL interfaces available
Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location
Table Top/Ceiling or Flush Mount (Table Top/Ceiling mounting bracket is optional)
Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.
Automatic signal recognition and scaling for easy setup and installation
Specifications
GENERAL
Display unit
19″ COLOR LCD
Screen Resolution
1280 x 1024 (SXGA)
*Resolution from VGA to SXGA are accepted
Contrast
900：1
Viewing Angle
(Vertical) up/down　80°or more
(Horizontal) left/right　80°or more
Screen Brightness
1000 cd/㎡
Interface
Analog RGB (D-SUB/15 pins): 1 port
DVI-D: 2 ports
Composite Video (NTSC/PAL): 3 ports
Temperature
−15 ℃ to +55 ℃
Waterproofing
IP56 (front panel), IP22 (rear panel)
Power Supply
12-24 VDC, 8.4 – 3.9 A
Weight
Flush mount：8.2 kg
